32212 Tapered Roller Bearing
Tapered Roller Bearing is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

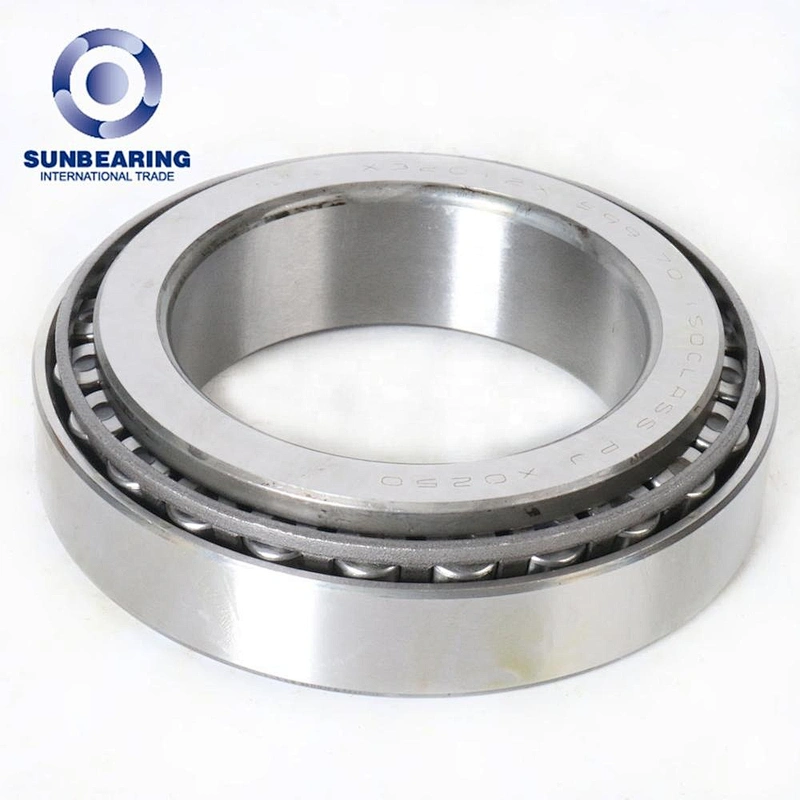

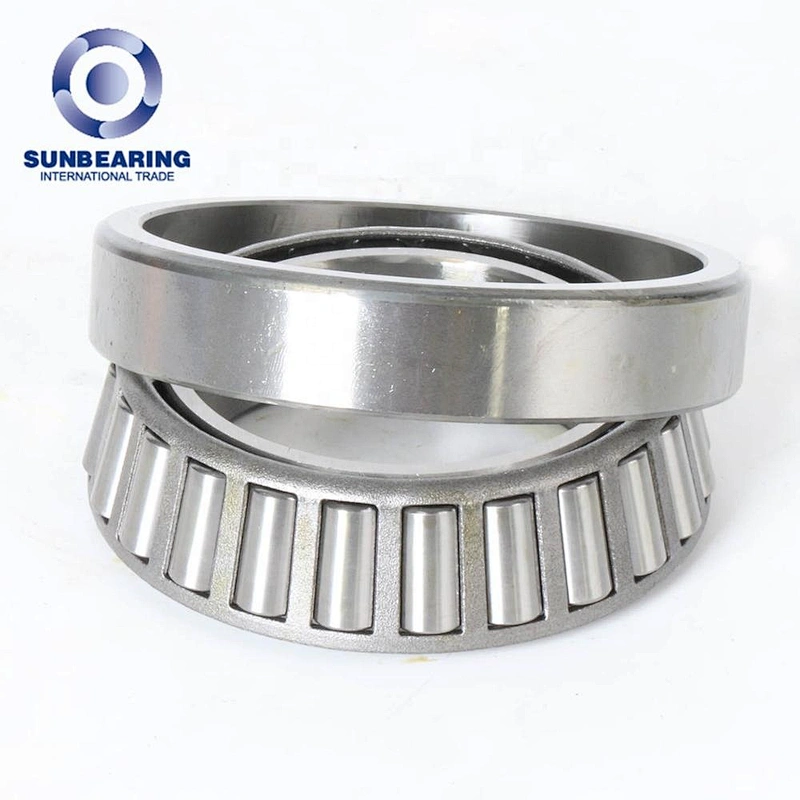

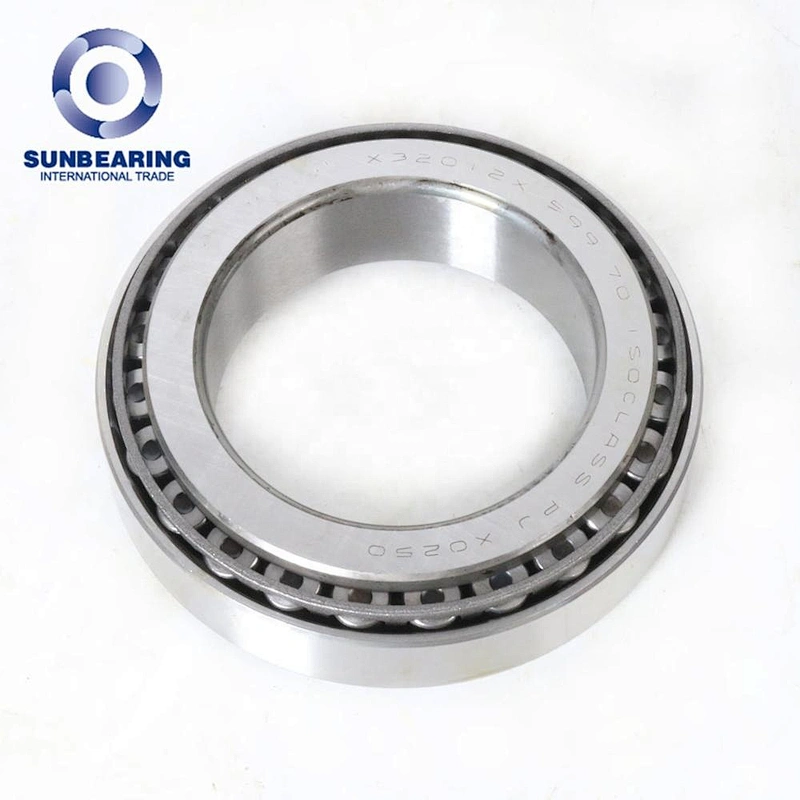

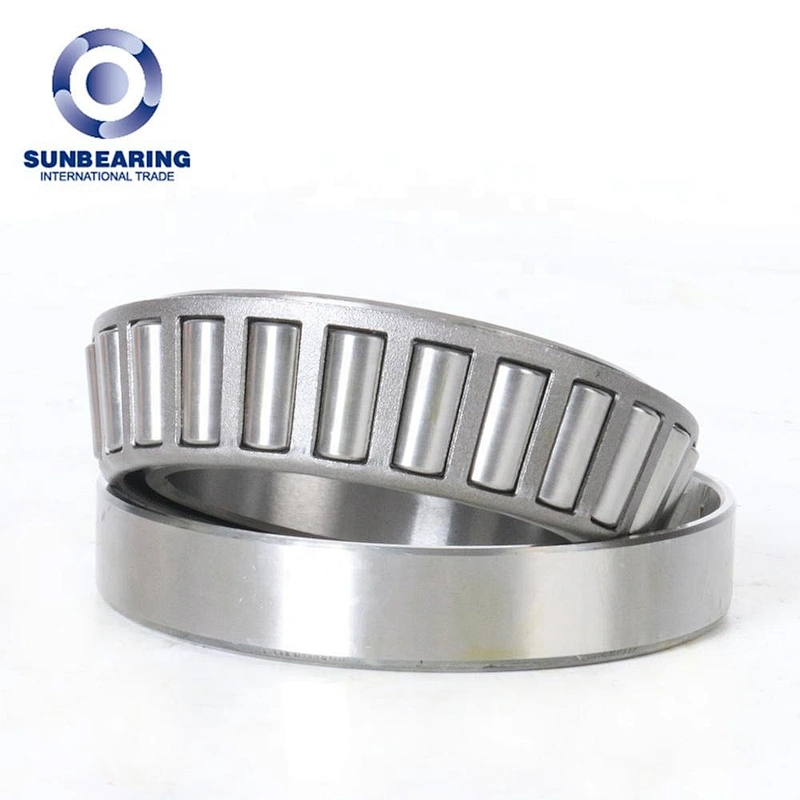

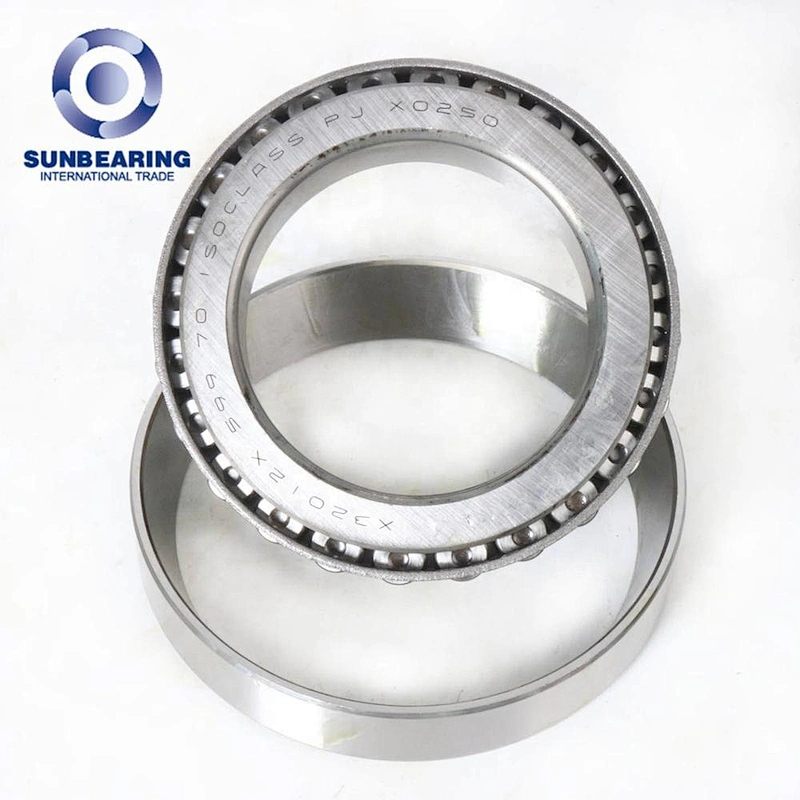

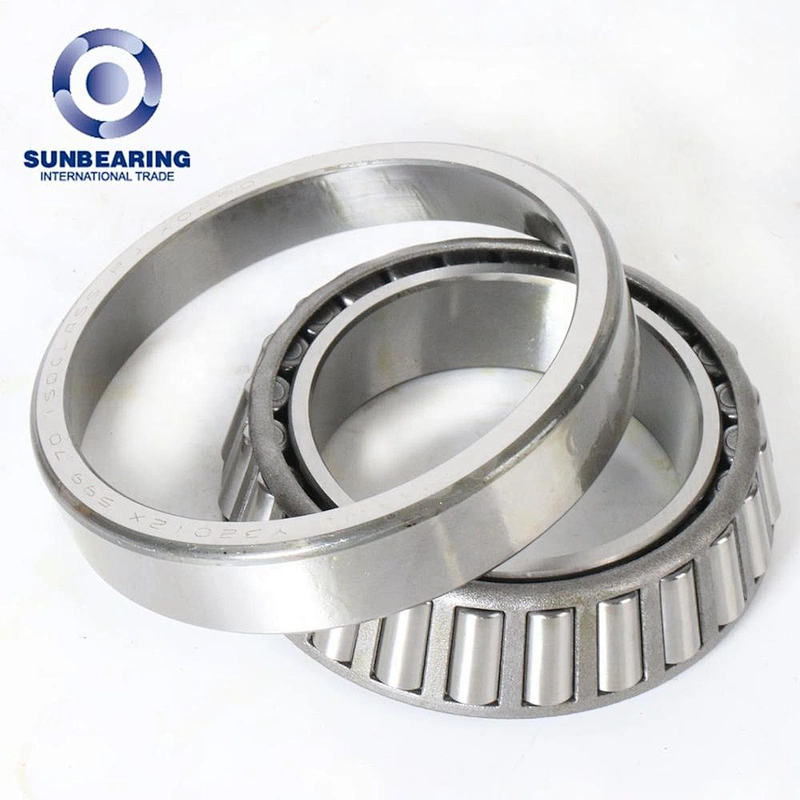

Product picture&2D Drawing of 32212 Tapered Roller Bearing
| Specifications |
| Cage Type Stamped Steel |
Weights 0.597Kgs |
| Dimensions |
| d Bore 60.00mm |
| D Cup Outer Diameter 95.00mm |
| B Cone Width 30.00mm |
| C Cup Width 23.00mm |
| T Bearing Width 30.00mm |
| Abutment and Fillet Dimentions |
| R Cone Backface Radius 1.5mm |
| r Cup Backface Radius 1.5mm |
| da Cone Frontface Backing Diameter 71.00mm |
| db Cone Backface Backing Diameter 66.00mm |
| Da Cup Frontface Backing Diameter 86.00mm |
| Db Cup Blackface Backing Diameter 91.00mm |
| Ab Cage Cone Frontface Clearance 4.000mm |
| Aa Cage Cone Blackface Clearance 5.500mm |
| e Constant 0.43 |
| Basic Load Ratings |
| Cr Dynamic Load Rating 85.5kN |
| C0r Static Load Rating 127kN |
| Factors |
| Grease Reference Speed 3,600rpm |
| Oil Reference Speed 5,000rpm |
Tapered Roller Bearings can be used in many fields
- Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
- Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
- Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
- The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
- Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
- Car: truck, road, bus, car, modified car, motorcycle ,etc.
SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
Quality control of SUN Bearing for all bearing series
- Assembly
- Windage test
- Cleaning
- Rotary test
- Greasing and gland
- Noise inspection
- Apprearance inspection
- Rust prevention
- Product packing
Processing
Each bearing is 100% inspection by qualified inspectors and instruments in all above processes.
A. Package instuctions of SUN Bearing for all bearing series.
- Commercial packaging: 1pc/plastic bag + color box + carton + pallet
- Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
- Customized packaging solutions according to customers' requirements
- High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
- By courier like EMS, DHL, UPS, TNT, Fedex
- By air to air port
- By sea to sea port
- Select the best shipment mode after customers' confirmation through negotiations between us
- Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
- SUN Bearing can provider OEM or ODM service according to samples or drawings offered by customers.
- Lead time is usually 15-45days.
- Confirm the specifications of the customized bearing through researching application lines, environment&conditions,matched equipments specifications,etc.
- Assure the customized bearing complied with clients' requiements to give our customer the most stable use effect of the beairng.
