51126 Thrust Ball Bearing
Thrust ball bearing can be classified into two kinds.This kind of bearing consists of a shaft washer, a housing washer and a ball-cage assembly. The bearing is separable facilitating the separate mounting of the shaft washer, housing washer and ball-cage assembly. It can withstand axial load in one direction and conduct axial locating in one direction but they must not be subject to any radial load.

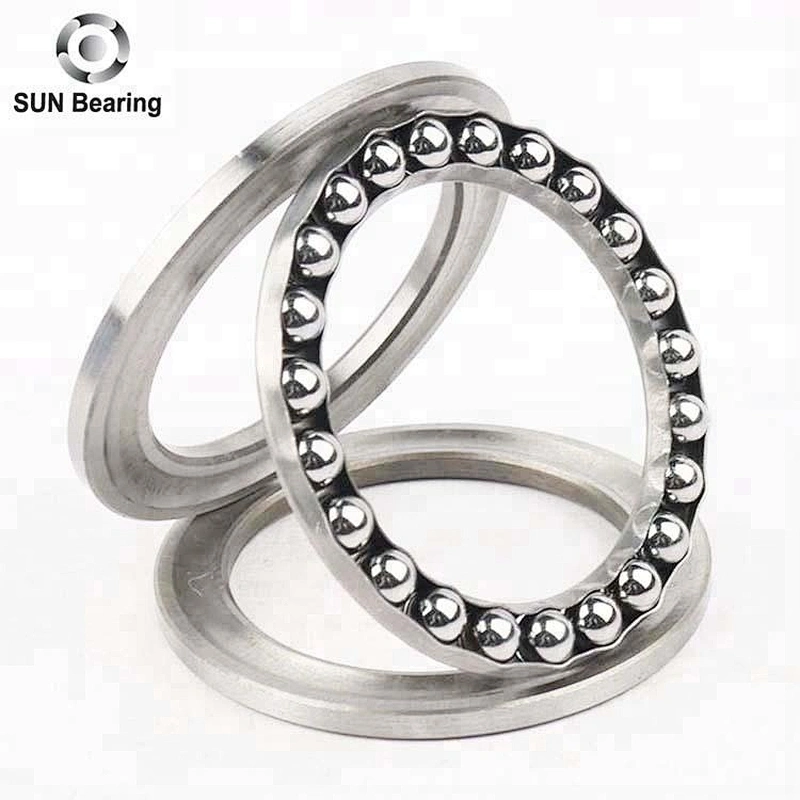

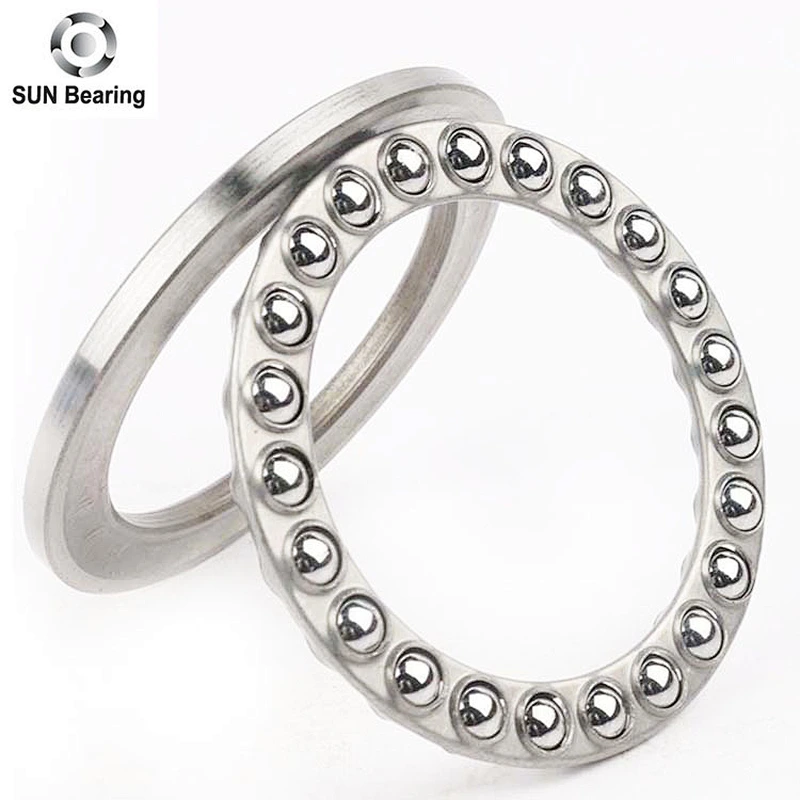

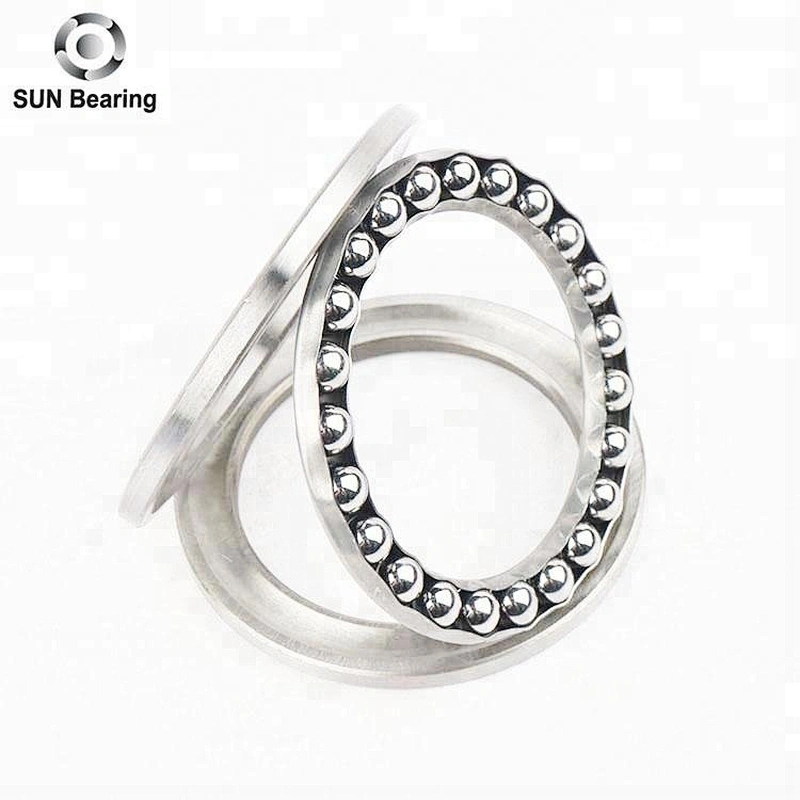

Product picture&2D Drawing of 51126 thrust ball bearing
| Specifications |
| Design Units Metric |
Weights 1.68Kgs |
Cage Material Steel |
Roller Type ball |
| Dimensions |
| d-Bore 130.00mm |
| D-Outside Diameter 170.00mm |
| d1-Washer Outside Diameter 30.00mm |
| D1-Housing Washer Bore 170.00mm |
| T-Height 132.00mm |
| r-Chamfer Radius 1.0mm |
| Basic Load Ratings |
| Cr Dynamic Load Rating 105kN |
| C0r Static Load Rating 350kN |
| Oil Reference Speed 1,400rpm |
| Grease Reference Speed 2,000rpm |
Deep Groove Bearings can be used in many areas.
- Crane hooks, vertical pumps, vertical centrifuges, jacks, reducers.
Motors, Machinery, Electric Tools, Sports Apparatus.
Office equipments, shower blocks, hanging rounds, closet wheels, toys.
Automatic machines,Textile machines.
Pumps,agricultural machinery, machine tools, furniture.
Quality control of SUN Bearing for all bearing series
- Assembly
- Windage test
- Cleaning
- Rotary test
- Greasing and gland
- Noise inspection
- Apprearance inspection
- Rust prevention
- Product packing
Processing
Each bearing is 100% inspection by qualified inspectors in all above processes.
A. Package instuctions of SUN Bearing for all bearing series.
- Commercial packaging: 1pc/plastic bag + color box + carton + pallet
- Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
- Customized packaging solutions according to customers' requirements
- High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
- By courier like EMS, DHL, UPS, TNT, Fedex.
- By air to air port.
- By sea to sea port.
- Select the best shipment mode after customers' confirmation through negotiations between us.
- Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
- SUN Bearing can provider OEM or ODM service according to samples or drawings offered by customers.
- Lead time is usually 5-15days.
- Confirm the specifications of the customized bearing through researching application lines, environment&conditions,matched equipments specifications,etc.
- Assure the customized bearing complied with clients' requiements to give our customer the most stable use effect of the beairng.
SUN Bearing's sample instructions for all bearing series.
- The bearing value below 80USD is for free.
- Customers only need to pay the freight in advance. We will send samples within 7days by (DHL, FedEx, TNT, EMS).
- As we have so many customers asking for samples all over the world,we can’t pay for the express charges for every customer.
- Pay back the express charges to our customers when customers engage a trial order.
