23052CA Spherical Roller Bearing
Spherical roller bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.

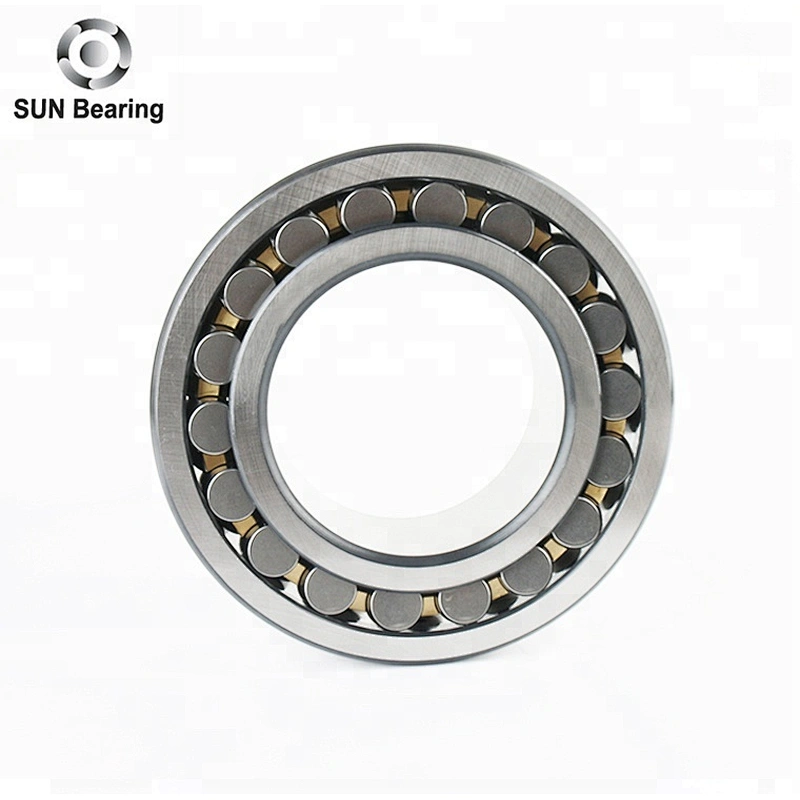

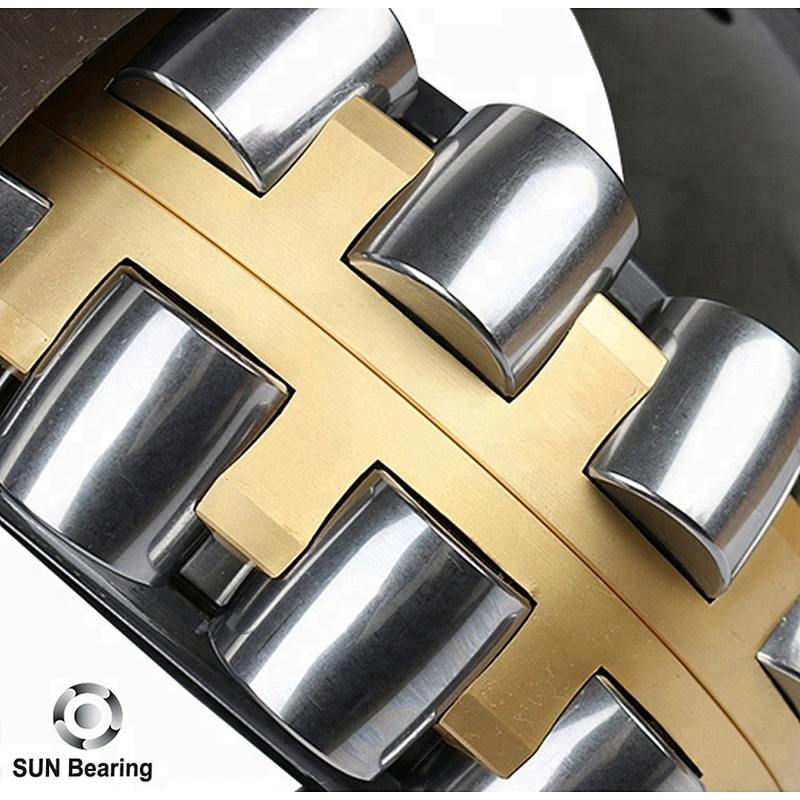

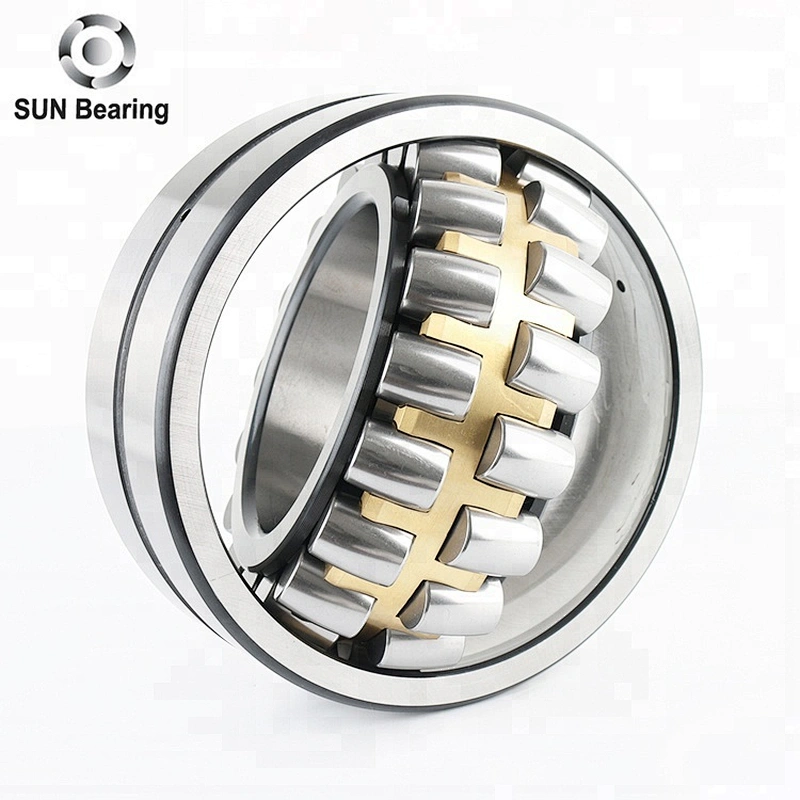

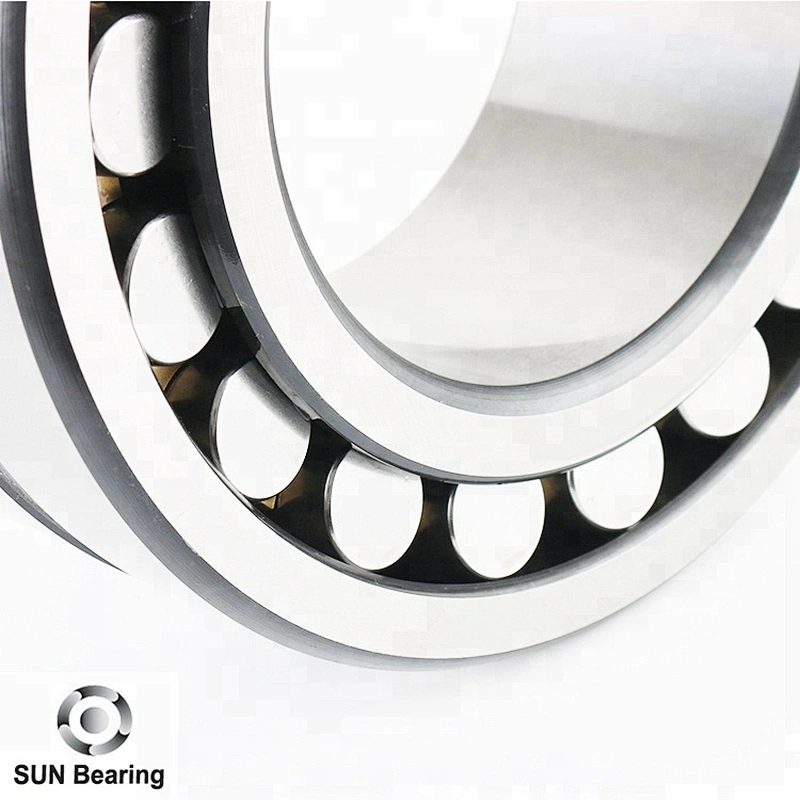

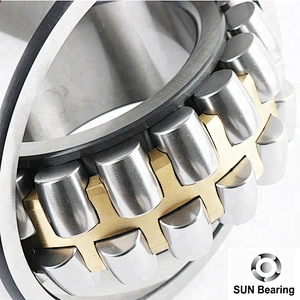

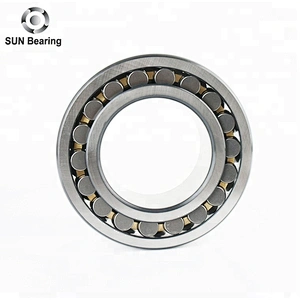

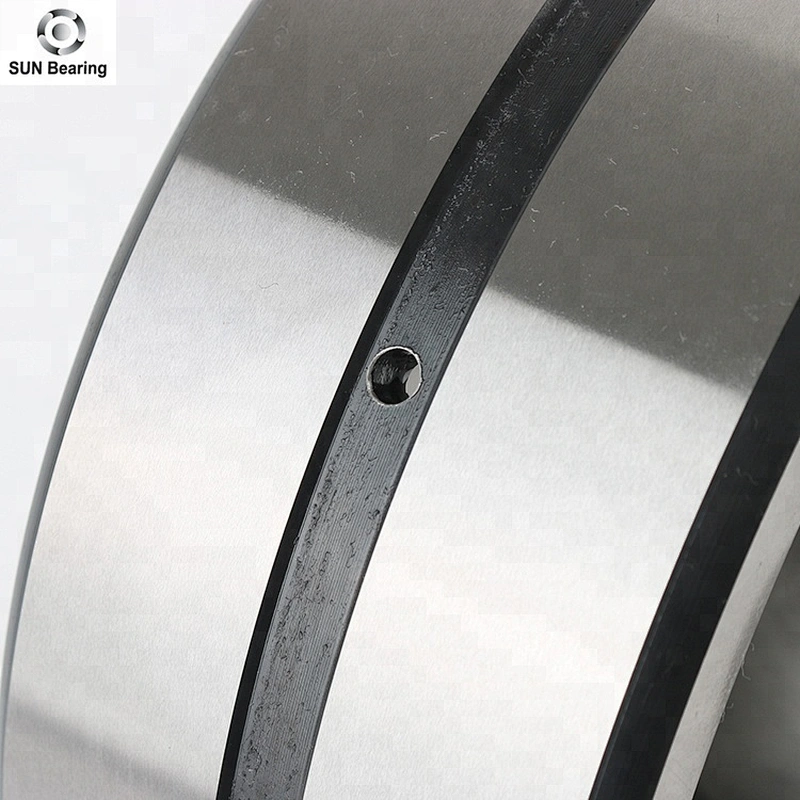

Product picture&2D Drawing of 23052CA Spherical Roller Bearing
| Specifications |
| Cage Tpye CA |
| Cage Material Brass |
Ring And Roller Material Chrome Steel GCr15 |
Weights 50.1Kgs |
| Dimensions |
| Bore Sizes d 260.00mm |
| Outside Diameter D 400.00mm |
| Inside And Outside Ring Width B 104.00mm |
| Radius Rs min 4.0mm |
| Basic Load Ratings |
| Cr Dynamic Load Rating(Two Raws) 1,290kN |
| C0r Static Load Rating 2,720kN |
| Factors |
| Reference Thermal Speed Rating(Grease) 900rpm |
| Reference Thermal Speed Rating(Oil) 1,200rpm |
| e-ISO Factor 0.25 |
| Y0-ISO Factor 2.7 |
| Y1-ISO Factor 4.1 |
| Y2-ISO Factor 2.7 |
Spherical Roller Bearings can be used in many areas
- Casting cements,rolling mills,conveyors in iron and steel industry
- Crushing machines in the cement industry
- Roling dryers,pulpers,squeezers,press masters,water extractors,pumps in paper-making industry
- Gear boxes in shipbuilding industry
- Spinning machines,coal pulverizers,air blowers,rolling machines,generators,elevators,machine tools,vibrating screens,main spindles for wind turbines,etc.
SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
Quality control of SUN Bearing for all bearing series
- Assembly
- Windage test
- Cleaning
- Rotary test
- Greasing and gland
- Noise inspection
- Apprearance inspection
- Rust prevention
- Product packing
Processing
Each bearing is 100% inspection by qualified inspectors and instruments in all above processes.
A. Package instuctions of SUN Bearing for all bearing series.
- Commercial packaging: 1pc/plastic bag + color box + carton + pallet
- Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
- Customized packaging solutions according to customers' requirements
- High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
- By courier like EMS, DHL, UPS, TNT, Fedex
- By air to air port
- By sea to sea port
- Select the best shipment mode after customers' confirmation through negotiations between us
- Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
- SUN Bearing can provider OEM or ODM service according to samples or drawings offered by customers.
- Lead time is usually 5-15days.
- Confirm the specifications of the customized bearing through researching application lines, environment&conditions,matched equipments specifications,etc.
- Assure the customized bearing complied with clients' requiements to give our customer the most stable use effect of the beairng.
SUN Bearing's sample instructions for all bearing series.
- The bearing value below 80USD is for free.
- Customers only need to pay the freight in advance. We will send samples within 7days by (DHL, FedEx, TNT, EMS).
- As we have so many customers asking for samples all over the world,we can’t pay for the express charges for every customer.
- Pay back the express charges to our customers when customers engage a trial order.
