292/800 Thrust Roller Bearing
Thrust spherical roller bearings are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.Spherical thrust roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length.Therefore,they can accommodate relatively high speeds, heavy axial loads in one direction and heavy radial loads.The load is transmitted between the raceways at an angle to the bearing axis. Spherical roller thrust bearings are self-aligning and can accommodate misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

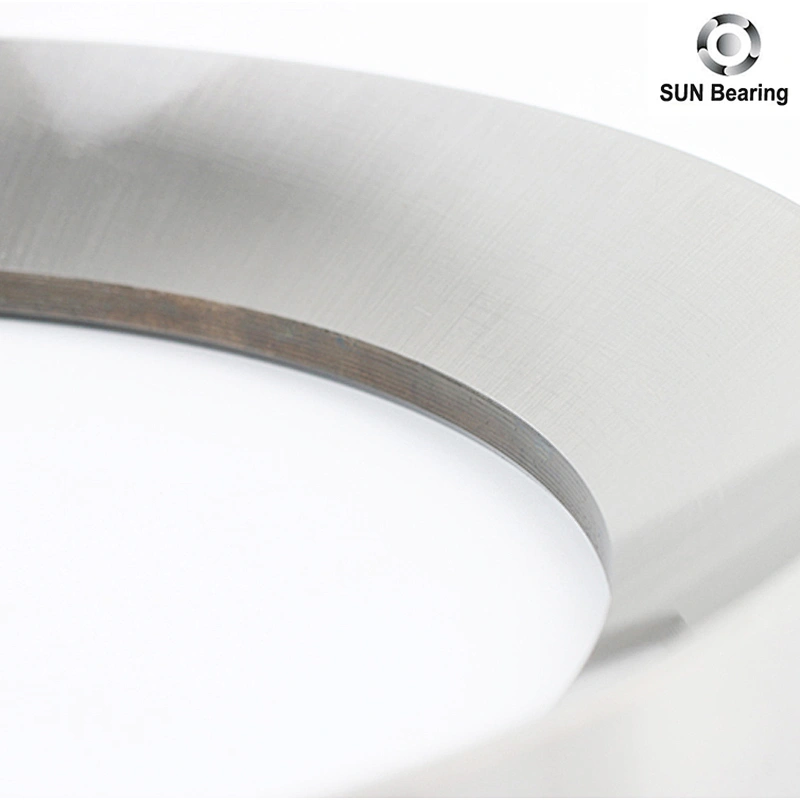

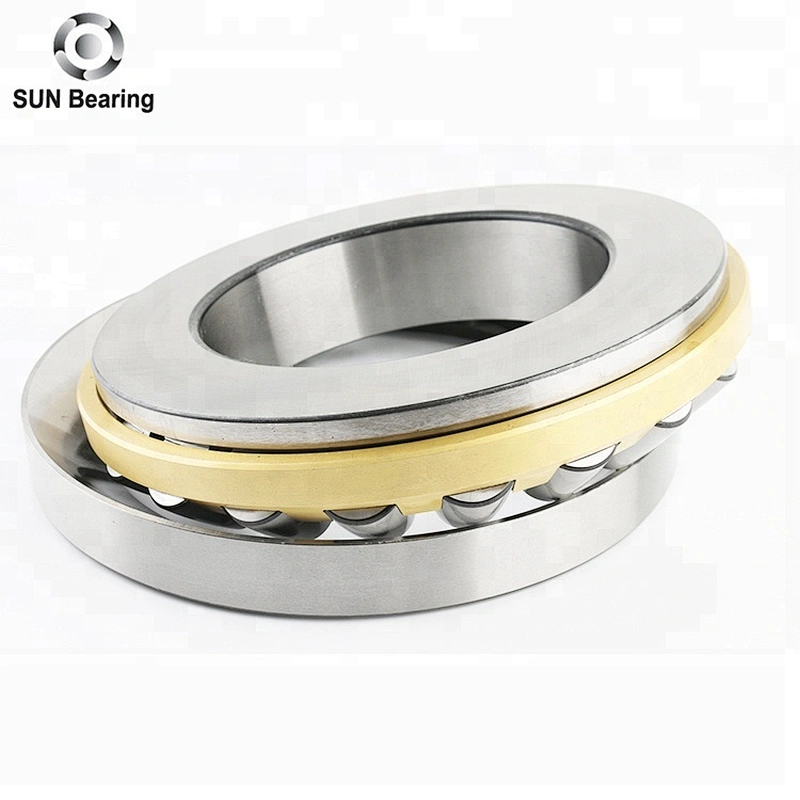

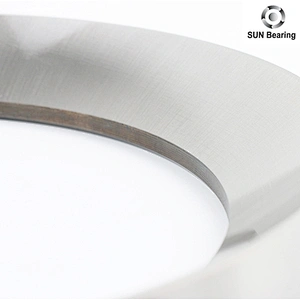

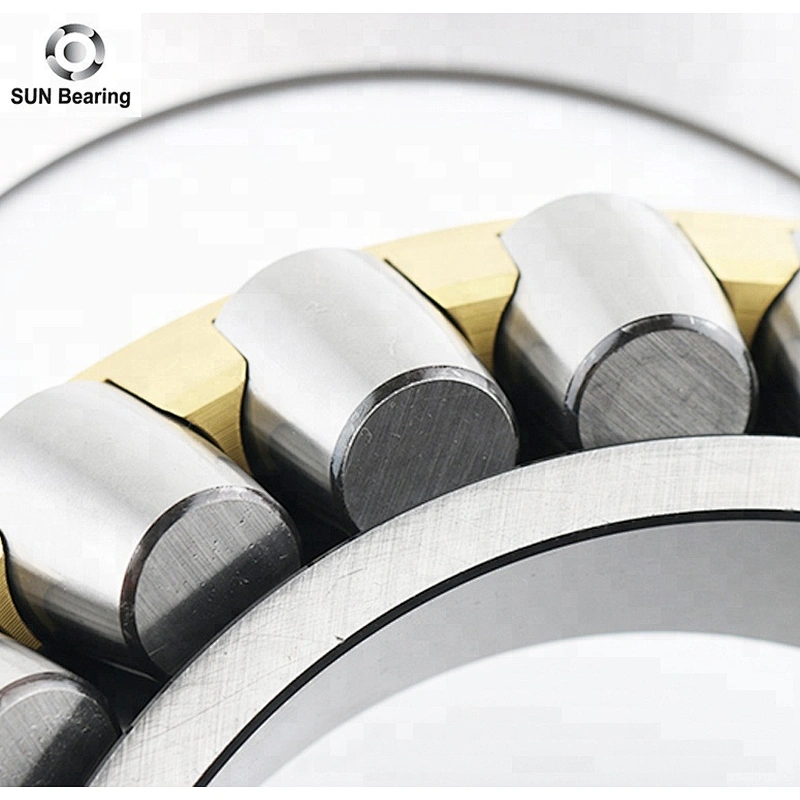

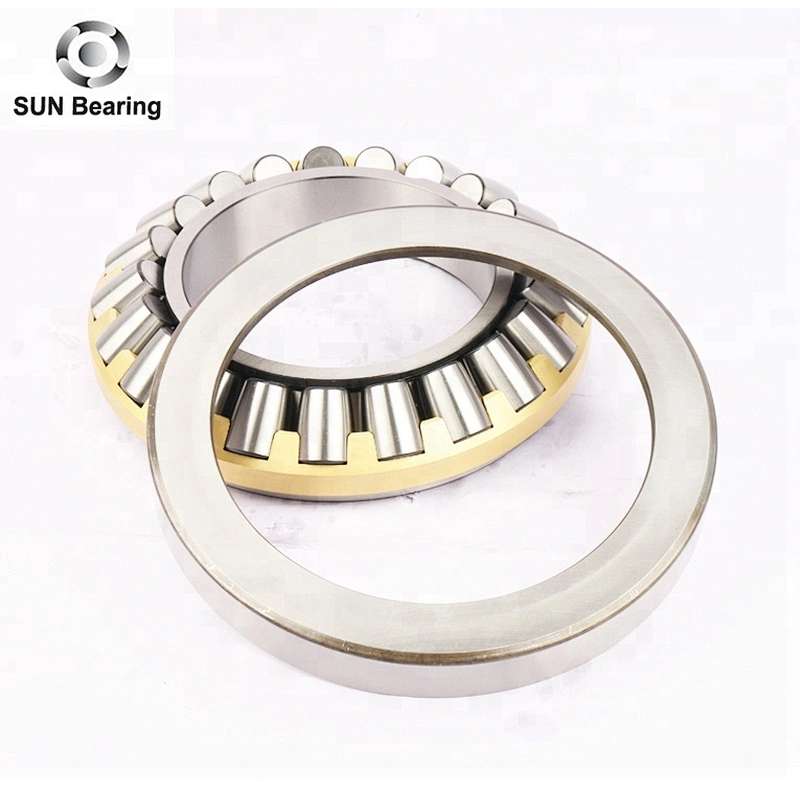

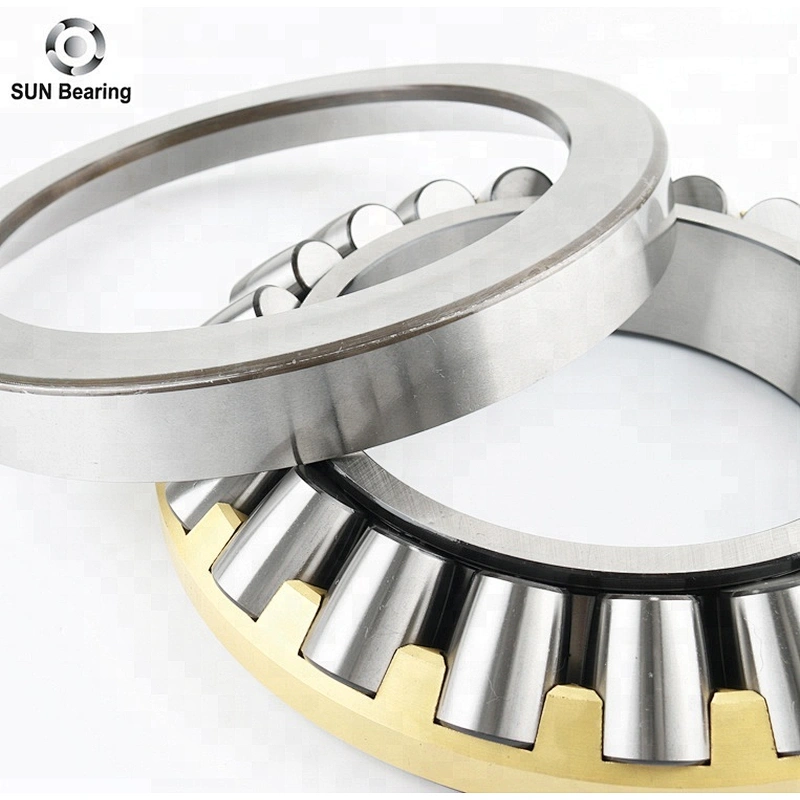

Product picture&2D Drawing of 292/800 Thrust Roller Bearing
| Specifications |
| Design Units Metric |
Weights 343Kgs |
Cage Material Brass |
Roller Type Sphericity |
| Dimensions |
| d-Bore 800.00mm |
| D-Outside Diameter 1060.00mm |
| d1-Cone Outside Diameter 1010.00mm |
| D1-Cup Bore 907.50mm |
| E-Shoulder Diameter-Housing(Min) 935.00mm |
| H-Shoulder Diameter-Shaft(Max) 980.00mm |
| r-Fillet Radius 7.5mm |
| S-Dimention 426.00mm |
| T-Width 155.00mm |
| T3-Cone Width 80.00mm |
| Basic Load Ratings |
| Cr Dynamic Load Rating 5,650kN |
| C0r Static Load Rating 33,000kN |
| Oil Reference Speed 320rpm |
Thrust Spherical Roller Bearing can be used in many fields
- Oil rigs, hydroelectric generators, machines for producing steel and iron
- Vertical motors, propeller shafts, tower cranes, extrusion machines
- Metalworking, plastics, marine, industry gearboxes
- Pulp&paper, material handling, fluid machinery, mining&construction
SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
Quality control of SUN Bearing for all bearing series
- Assembly
- Windage test
- Cleaning
- Rotary test
- Greasing and gland
- Noise inspection
- Apprearance inspection
- Rust prevention
- Product packing
Processing
Each bearing is 100% inspection by qualified inspectors and instruments in all above processes.
A. Package instuctions of SUN Bearing for all bearing series.
- Commercial packaging: 1pc/plastic bag + color box + carton + pallet
- Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
- Customized packaging solutions according to customers' requirements
- High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
- By courier like EMS, DHL, UPS, TNT, Fedex
- By air to air port
- By sea to sea port
- Select the best shipment mode after customers' confirmation through negotiations between us
- Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
SUN Bearing's payment terms for all bearing series.
- Preferred on line payment is through the trade assurance order of Alibaba,which guarantees the buyers to get compensation for free when suppliers default happens even though the suppliers refuse to handle disputes.
- Other payment modes are available including Paypal,T/T,Western Union,L/C etc.
- Confirm the payment terms by negotiation with our clients on the basis of mutual benefit.
Assure to inform customer the receipt of customers' payment at once.Then we will arrange the delivery ASAP.
- SUN Bearing can provider OEM or ODM service according to samples or drawings offered by customers.
- Lead time is usually 15-45days.
- Confirm the specifications of the customized bearing through researching application lines, environment&conditions,matched equipments specifications,etc.
- Assure the customized bearing complied with clients' requiements to give our customer the most stable use effect of the beairng.
SUN Bearing's sample instructions for all bearing series.
- The bearing value below 80USD is for free.
- Customers only need to pay the freight in advance. We will send samples within 7days by (DHL, FedEx, TNT, EMS).
- As we have so many customers asking for samples all over the world,we can’t pay for the express charges for every customer.
- Pay back the express charges to our customers when customers engage a trial order.
