JDB sliding oilless bearing
JDB sliding oilless bearing is a kind of solid lubricant embedded bushing,which is a new type made from strong brass and homogeneously embedded with solid lubricant in its body.It breaks through the limit of general bearing whose lubrication depends on oil film.So it is suitable for high temperature,heavy duty,anti-corrosion and the working conditions where oil is hard to be introduced.Its performance doubles both on hardness and wear-friction.

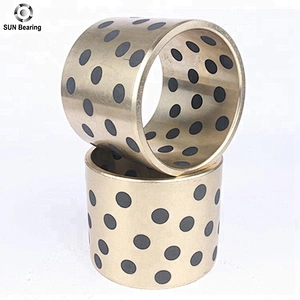

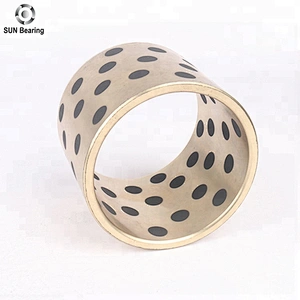

Product picture&2D Drawing of JDB sliding oilless bearing
| Specifications |
| Base Hardness HB210-270 |
Fiction coef(u) <0.16 |
Temperation Limit -40℃~+300℃ |
PV Limit Dry(1.65N/mm².m/s); Oil(3.25N/mm².m/s) |
Dynamic Load Limit 100N/mm² |
Speed Limit Dry(0.5m/s); Oil(2m/s) |
| Bemensions |
| Inner Diameter d 50.00mm |
| Inner Diameter Tolerance +0.025~+0.050mm |
| Outside Diameter D 62.00mm |
| Outside Diameter Tolerance +0.011~+0.030mm |
| Length 60.00mm |
| Length Tolerance -0.30~-0.10mm |
Spherical plain bearings can be used in many areas.
- Continuous casting machines, injection molding machines, train support brackets.
- rolling steel equipments, mining machinery, ships, steam turbines,etc.
- Hoisting machines,textile machinery,wind power generation michines,water turbines.
- moulding machines,paper machines,machine tools.
- chemical industry,coal industry,oil industry,aerospace industry.
SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
Quality control of SUN Bearing for all bearing series
- Assembly
- Windage test
- Cleaning
- Rotary test
- Greasing and gland
- Noise inspection
- Apprearance inspection
- Rust prevention
- Product packing
Processing
Each bearing is 100% inspection by qualified inspectors and instruments in all above process.
A. Package instuctions of SUN Bearing for all bearing series
- Commercial packaging: 1pc/plastic bag + color box + carton + pallet
- Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet
- Customized packaging solutions according to customers' requirements
- High quality rubber cover: waterproof, wear-resisting, high temperature resistance,corrosion resistance
B. Shipping
- By courier like EMS, DHL, UPS, TNT, Fedex
- By air to air port
- By sea to sea port
- Select the best shipment mode after customers' confirmation through negotiations between us
- Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.
- SUN Bearing can provider OEM or ODM service according to samples or drawings offered by customers.
- Lead time is usually 5-15days.
- Confirm the specifications of the customized bearing through researching application lines, environment&conditions,matched equipments specifications,etc.
- Assure the customized bearing complied with clients' requiements to give our customer the most stable use effect of the beairng.
